Paper cup making machine

Automatic Paper Cup Forming machine



  The working principle of our automatic Paper Cup Forming machine is that a main motor drives the whole machine to work, which realizes the perfect integration of chain and cam structure. Now the machine uses a single aluminum plate to replace the previous three plate machine, which greatly reduces the machine failure rate and reduces the training time for the operator. 3-9oz single and double coated paper cups can be customized according to customer requirements. It is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic or copper strip welding, mechanical hand paper tube transfer, oil injection, bottom punching, bottom folding, preheating, and rolling Continuous processes such as flower and cup unloading can stably produce paper cups of various specifications. It is a paper cup equipment independently developed by our company that has undergone comprehensive technical improvements to improve the stability of the whole machine.
  Automatic Paper Cup Forming machine is a multi station automatic molding machine, the automatic paper feeding, sealing (bonded glass), oil filling, filling, bottom heating, knurling, crimping and continuous process of photoelectric detection and fault alarm, counting function, is the ideal equipment for tasting drink cup, tea cup, coffee cup, advertising cup, ice cream cups or other food containers for the production of paper cups.
Product Features:

1) Simple operation and easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution.

4) Can add the cup stacker, which can directly automatic collect the cup.

Categories
Paper cup making machine

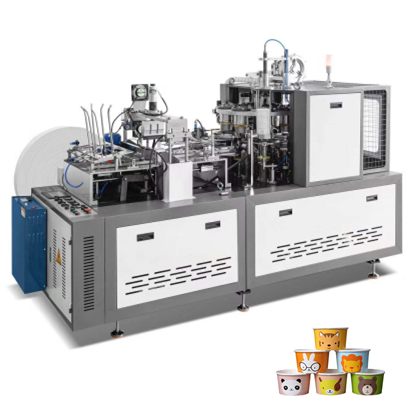

Automatic Paper Bowl Making Machine



  Automatic Paper Bowl Making Machine is an newest type of paper bowl machine, by auto feeding paper with multiple rows, paper anti- reverse device( make sure correct position), ultrasonic welding, oil fill, robot arm, paper tube, punch bottom, folding bottom, pre-heating,knurling, curling, and drop cups. Machine can make various size of bowls by changing mould. This model is invented by our team and widely improved by technique.
  Automatic Paper Bowl Making Machine is an equipment both for single pe and double pe paper,and automaticly for paper feeding,paper cup fomring, accunting, warning,this machine compared with old type low speed machine,this machine more faster and stable,the machine is running by gear,no chain,automatic oil lubricaton,PLC control,with ultrasonic and collectrion.
Product Features:

1.More productivity. Automatic Paper Bowl Making Machine with 50-60pcs/min speed, which is developed from with 30-40pcs/min, but electricity consumption is remained to be 4.8kw with higher productivity.

2.This model dimension is special designed to be smaller than before, so the construction is more compact and the working process is simpler. To change the 3 plates to 1 plate system, by adding a small plate for dropping cups, which is very convenient and easy.

3. The bottom cutter is under the mould to make sure directly punch cup bottom after the bottom paper cutting, so it can avoid cup to be turned over.

4. The paper curling adopts a separate cam, then the stroke of the lifting plate is greatly reduced and the vibration of the machine is reduced, so as to improve stability.

5. With the device PLC of non-touch multi-point light control button(in paper tube, paper roll,paper dropping place as so on) to detect working fault, machine can automatically stop running with alarm. It can avoid machine parts friction to improve machine stability and lifespan.

6. Hold tube Station is driven by 3-into-1 Cam system, which can work voiceless and more stably. This is leading technology in China.

Categories
Carton box making machine

Paper Lunch Box forming machine

Our Paper Lunch Box forming machine is an ideal equipment to produce paper box such like hamburger box, chips box,fried chicken box, kids meal box, etc. With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit. Our Paper Lunch Box forming machine produce premium quality disposable lunch box that are durable and will hold their shape for hours. Premium quality paperboard hamburger box is a low-cost way to protect your sandwich, pizza, and salad, and they come in many colors and customizable logos. You can use them to serve your lunch or dinner at parties, or high quality paper box to decorate your  posts of your newly concocted recipes.

Product Features:

1) The machine is with stable quality, high efficiency, speed up to 160pcs/min

2) Multi functional: In the same machine, it can make different sizes and shape boxes through changing mold

3) The machine uses the water-based glue device, can achieve high efficiency, high accuracy. Water based adhesive is a water-soluble adhesive glue for food grade (high security)

4) This machine is mostly used high quality seal bearing, long service life, and good stability

5) The machine uses the PLC intelligent control system, in the paper, no paper state automatic shutdown

6) The main mold with pine material, the replacement of the mold with high efficiency

Categories
Paper Stick Making Machine

Lollipop Cotton Swab Paper Stick Making Machine

Paper Stick Machine consists of a paper feeding mechanism, a loop twisting mechanism, and a gluing mechanism, forming mechanism and conveyor belt feeding.



Institutional composition:

1.Paper feeding mechanism: The paper roll fixing mode is based on the diameter of the paper roll, which is divided into two types: built-in type and outer frame type. Magnetic powder tension controller is a device for ensuring that the paper has sufficient tension to ensure that the paper rod forms a belt

2. Paper cutting mechanism: the mechanism for cutting the formed paper stick sent by the paper-to-roller automatically according to the set length
Note: paper stick diameter base on the thickness of the paper, so be sure to tell the thickness of the paper before ordering
Fine shaft paper stick: φ1.4-2.0mm, use around 30-50 grams
Thick paper stick: φ2.0-3.0mm, use around 50-70 grams

3. Paper stick forming mechanism: The rubber will press the cut shaped paper stick firmly on the setting template and rub the paper stick into a predetermined shape.
Diameter, the formed paper stick is sent out by the receiving conveyor

4.Glue supply mechanism: Glue coating wheel completes the glue application, and the glue amount is adjusted and controlled by the glue application motor

5. Conveyor belt feeding mechanism: The paper stick that has been cut off falls on the conveyor belt installed at the lower
part, and is smoothly delivered to the box And then waiting to be collected


Product Features:
1.Using PLC and touch screen interface control, with stable speed and overload protection function;
2. Microcomputer automatic speed regulation, can accurately control the watering amount required for paper stick roll sticking;
3. Unwinding adopts magnetic powder tension automatic control to ensure stable paper feeding force;
4. Equipped with a flexible manual correction device, which can quickly adjust the deviation of paper feeding.

Categories
Other auxiliary machines

Automatic Bevel Paper Straw Machine

The device realizes the automatic oblique cutting of a single double (or single) length suction pipe into two (or single) suction pipes, which integrates the automatic dropping of suction pipe and oblique cutting.

Main Features：

1. The device realizes the automatic oblique cutting of a single double (or single) length suction pipe into two (or single) suction pipes, which integrates the automatic dropping of suction pipe and oblique cutting.

2. This machine is controlled by PLC. The host machine is equipped with frequency conversion and speed regulation. The man-machine interface is touch screen. It is simple to set and easy to operate.

3. The cutting part adopts multi-knife cutting system, which has no waste, high precision,time-saving and high efficiency.

4. The main accessories are made of stainless steel to ensure the hygiene and environmental protection of the products.

Categories
Paper cup making machine

Disposable Coffee Tea Paper Cup Making Machine

WORKING PROCEDURE EXPLANATION


 Disposable Coffee Tea Paper Cup Making Machine to produce the cups, a special coated paper with one-side or double side PE lamination is used. Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by normal heater or ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup. Then, the cup bottom is preheated and folded with the bottom paper to heating, knurling, curling and final step the paper cup is finished and delivered.

PRODUCT APPLICATION


Disposable Coffee Tea Paper Cup Making Machine is an automatic machine with multi-working station, which runs a procedure of single pe coated or double PE coated,  paper cup fan feeding, cup side welding(by heater or ultrasonic), silicone oil lubrication, bottom punching, bottom preheating, bottom folding, bottom knurling, top curling and cup discharging. It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running. It is an ideal equipment of making disposable paper cups for all types cups (hot and cold drink, coffee, tea, ice cream cup an so on.)

Product Features:

1: Advanced indexing cam open structure,manufacturing precision,ensuring and stability of the machine operation.

2: Swiss import Leiter flameless hot air system,stable performance,high production efficiency.

3: Using high-strength structural profiles,compact machine structure stable.

4: All use of standardized parts production,versatility,excellent interchange eability ,easy maintenance of equipment .

5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.

6: Intelligent design,PLC automatic control,servo motor,automatic fault alarm,counting, detection,parking

7: Automatic shutdown isolation.

Categories
Carton box making machine

Full-automatic cake box making machine

Full-automatic cake box making machine is an integrated  three-dimensional paper box forming machine, which saves production area,improve the production efficiency.

It is mainly used to produce three-dimensional cartons such as cake boxes and meal boxes.

Product Features:

1.The machine adopts electric components imported from Japan Omron, France Schneider, Germany Siemens, Delta, etc. The control system adopts PLC programmable controller + touch screen man-machine interface.

2.The water-based gluing device is highly efficient and precise gluing, the gluing position of the paper box can be adjusted, and the gluing device is reasonably designed, compact, stable and easy to clean. Raw material: water – based glue is water – soluble adhesive for food grade glue.

3.Carton output device: automatic carton output, collecting and piling device, counter can be installed to facilitate customer packaging and reduce labor input.

Categories
Paper Stick Making Machine

Fully automatic paper stick making machine

The paper stick machine is also called the straight winding machine. The working method is to cut the whole roll of paper according to the length, and then roll it up from the beginning until the whole paper section is finished. In the rolling, the two ends of the paper stick are always flush. , So it is called a straight roll machine.



Main Features：

(1) Because the straight roll machine only coats the outer circle of the paper stick with a layer of glue, the paper stick
produced by it is slightly softer than the slanting machine paper stick, so the straight roll machine paper stick is generallysupported in cakes, lollipops, shoes, etc. Used in products or industries;

(2) Straight-winding machines mostly produce products with diameters above 3.0mm (paper sticks above 3.0mm are a bit soft);
(3) It adopts man-machine interface, intuitive display and easy operation. With multiple sets of memory devices, there is no need to reset the product to change the product;
(4)The parts are welded, finished and specially processed to ensure high quality. The machine has stable performance and long service life.
(5) The diameter of the paper rod can be changed by servo control.

Categories
Paper cup making machine

Full-Automatic Paper bueket Machine



Full-Automatic Paper bueket Machine is a fully automatic paper bucket molding equipment. Through multiple rows of automatic paper delivery, paper anti-retreat devices(to ensure accurate positioning), oil injection, robot hand paper transfer, upper cup tube, bottom punch, fold bottom, Preheat, knurling, curling, unloading cup and other continuous processes,this model can make various size of paper bucket by changing mould. This is newest invention made by our company.
  Full-Automatic Paper bueket Machine is now best equipment one,our paper bueket machine is gear cam system,auto oiling,it is much better than before old chain system machine,and our machine also use PLC control,more intelligent,machine also equipped with ultrasonic,hot air system and robot hand,speed can stable running for 30-35pcs/min ,this is now best idea equipment for paper soup salad bueket making.
Product Features:

1. Full-Automatic Paper bueket Machine speed is about 30-35 per min, Although capacity is more,but the power consumptive is only 8kw.

2. Machine size is not big, and the structure is more reasonable, the process is simpler. From 3 plate, we change turn plate into single turnplate, it is easy to collect cups.

3. The bottom paper is under the mould, the paper bottom cut and joint with cup body, so it avoid cup turnover.

4. The paper curling adopts a separate cam, then the stroke of the lifting plate is greatly reduced and the vibration of the machine is reduced, so as to improve stability.

5. Hold tube Station is driven by 3-into-1 Cam system, which can work voiceless and more stably. This is leading technology in China.



Categories
Paper cup making machine

High speed automatic double plate paper cup machine

High speed automatic double plate paper cup machine speed is 120 pcs/min and with two turnplate, open cam design and gear transmission.
It is with auto paper fan feeding unit , PLC control system, bottom is sealed by Swiss Leister hot air device . photo detecting system ensures the bottom is without leakage , auto oil lubrication can ensure all mechanical parts work smoothly and it can stop working automatically if the sensors detect failures, it can greatly improve operation safety. The machine can finish the whole process including paper feeding, cup side sealing, cup bottom punching & feeding, heating, knurling, rotary heating curling, cup counting and collecting .
Product Features:

1. High speed automatic double plate paper cup machine has the advantages of high performance, high efficiency and high quality;

2. Station plate indexing using open CAM, advanced high precision CAM drive with gear drive to make each station forming accurate;

3. Maintenance and lubrication are more convenient and simple than closed divider. The transmission parts in the machine are large, easy to operate and maintain, which are better than similar products on the market in all aspects.

4. Servo tracking feed paper to ensure the size of the cup bottom paper, ensure the size of the cup bottom paper and effectively save raw materials;

5. Man-machine interface PLC system controls the machine for a long time of stable operation;

6. Automatic counting set cup table overall reasonable setting can replace manual busy work;

7. High speed automatic double plate paper cup machine has cup detection, cup cylinder forming detection, automatic stop fault alarm.

Categories
Paper cup making machine

Fully automatic paper cup making machine

Single Turn plate fully automatic paper cup making machine is a paper cup forming machine completed by a single turntable. It adopts an open intermittent indexing mechanism, gear transmission, synchronous belt drive, vertical axis structure, and a separate lifting structure for the curling, which reduces the stroke of the main functional mechanism.

It has reasonable distribution of various functional assemblies. The whole machine adopts the method of regular quantity grease lubrication in time, which reduces the wearing of machine parts. Whole cup making process is controlled by PLC, with photoelectric sensor monitoring. The step motor control paper feeding(have paper then feeding, no paper, then no feeding).

In order to improve the performance of the equipment, achieve fast and smooth operation, realize automatic shutdown of the fault, great.By simplifying the cup making process, feeding, adhesive, cupping, bottoming, heating, bottoming, knurling, curling, unloading, inspection, and automatic counting. Our machine is best choices for making paper cups.reduce the labor intensity of the workers, and improve the safety and stability of the equipment.

Product Features:

1. Fully automatic paper cup making machine for producing paper cup, tea cup, coffee cup, advertisement cup, ice cream paper cup or other food.
2. Automatic control adopts optically controlled non-contact switch, Micro-controlled transducer,Step-less speed adjustment
3. Easy changing molds produce different sizes paper cups
4. Easy operating by operator (one operator is enough)
5. Easy maintenance with minimum cost

Categories
Other auxiliary machines

Paper straw bevel cutting machine



Paper straw bevel cutting machine realizes the automatic oblique cutting of a single double (or single) length suction pipe into two (or single) suction pipes, which integrates the automatic dropping of suction pipe and oblique cutting.

Main Features：

1. High efficiency: 400~600 pieces per minute cutting capacity;

2. Cutting knife replacement period: 6 month (only twice one year);

3. Perfect and smooth cutting section (no any blemish around edge);

4. Low energy consumption: total power only 800 W;

5. Easy to operate for new workers;

6. Safety protection at cutting device. English or Chinese version display panel.
